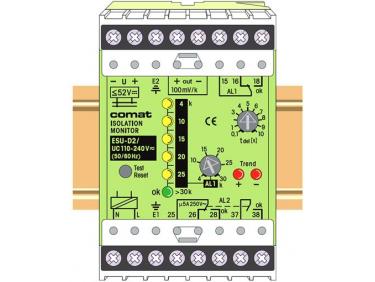

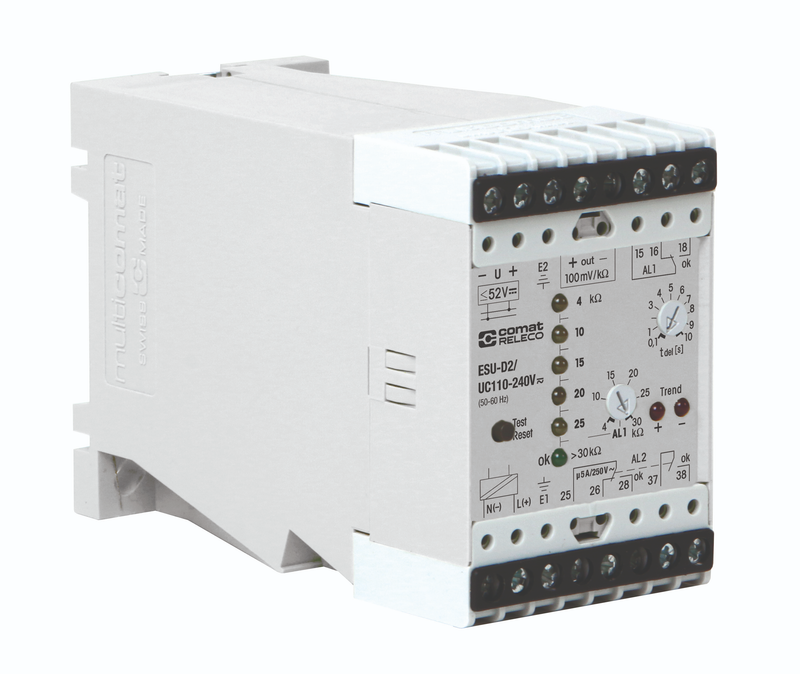

COMAT ESU-D2 Earth Leakage Monitoring Relay for Railways
COMAT ESU-D2 Earth Leakage Monitoring Relay for Railways

COMAT ESU-D2 Earth Leakage Monitoring Relay for Railways

by Arlin
Price ex GST
$0.00 - $0.00
$0.00
$2,400.00
$2,400.00 - $2,400.00
$2,400.00
Availability:
In stock
Availability:
In stock

Detect insulation faults and earth leakage in unearthed DC rail networks before they become a safety or operational problem. The Comat ESU-D2R is a railway-approved insulation resistance monitoring relay that continuously monitors earthing resistance against both the positive and negative poles of the network.

Two-stage alarm outputs — pre-alarm and main alarm — allow maintenance teams to respond to developing faults before a critical threshold is reached. An adjustable alarm delay reduces nuisance tripping, and an analogue output terminal enables external display of measured earthing resistance in real time. Approved to EN 50155 and EN 61373 for rolling stock environments.

SKU

Standard shipping

Estimated delivery: 4-5 weeks

Specifications

Function: Insulation resistance monitoring — unearthed DC networks
Supply voltage: 24–48V DC, UC110-240V
Pre-alarm output: 1 × changeover (CO) contact
Main alarm output: 1 × normally open (NO) + 1 × changeover (CO) contact
Contact rating: 5A / 250V
Analogue output: 5V terminal (0.1V/kΩ) for external resistance display
Alarm delay: Adjustable
Monitoring: Earth interruption and leakage on device; single or combined resistance against + or – pole
Railway approvals: EN 50155, EN 61373
Application: Rolling stock

ESU-D2/UC110-240V

Warranty

1 Year

Request a quote
Data Sheet Step File
