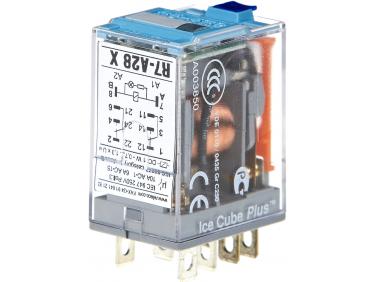

COMAT R7-A28 Miniature 2-Pole Relay — Gold Contacts for Railways

COMAT R7-A28 Miniature 2-Pole Relay — Gold Contacts for Railways

by Arlin
Price ex GST
$0.00 - $0.00
$0.00
$51.00
$51.00 - $62.00
$51.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

A railway-approved plug-in relay for rolling stock and rail control system applications where enhanced contact sensitivity is required. The R7-A28 delivers the same reliable 2-pole changeover switching as the R7-A20 but with a higher gold contact specification — rated to a minimum current of 5mA / 5V, making it suited to low-level signal and control circuit applications.

Approved to EN 50155 and EN 61373. LED indication and coil protection included as standard. A compatible relay socket (S7-C 2 Pole) is available separately. For standard AgNi contacts, see the R7-A20.

SKU

Standard shipping

Estimated delivery: 4-5 weeks

Specifications

Type: Miniature plug-in relay
Poles: 2 × changeover (DPDT)
Contact rating: 10A per pole (250V AC1 / 30V DC1)
Minimum current: 5mA / 5V
Contact material: AgNi + 10µ Au
LED indication: Yes
Coil protection: Yes
Railway approvals: EN 50155, EN 61373

R7-A28X/DC24V

Warranty

1 Year

Request a quote
Data Sheet Step File
