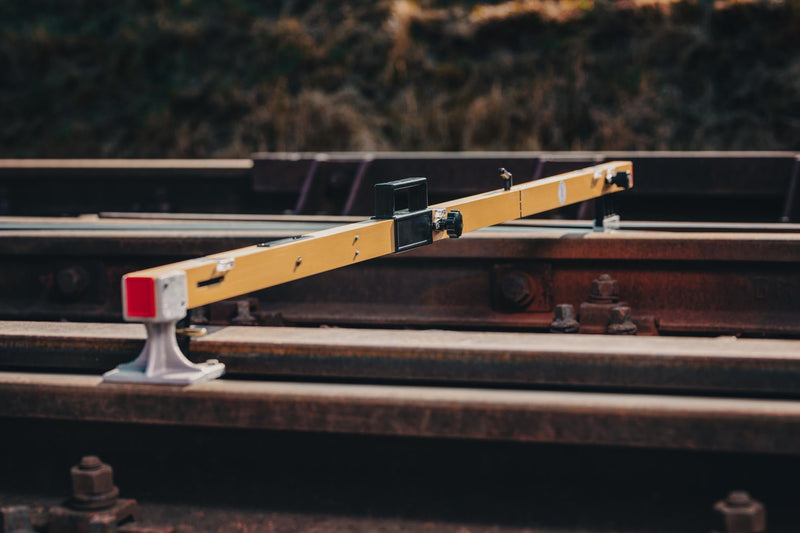

V&P RCA Switch and Track Measuring Gauge - 1067mm - 16mm

V&P RCA Switch and Track Measuring Gauge - 1067mm - 16mm

by KH1
Availability:
In stock

The RCA Switch and Track Measuring Gauge is a precise, hand-held tool for 1067 mm narrow gauge railways, used to measure key track geometry on rails and turnouts (switches). It checks track gauge, cant (superelevation), flangeway or groove width, and check rail alignment to ensure tracks meet design standards. Accurate readings help maintenance crews keep railways safe, reliable, and properly aligned, reducing wear, derailments, and operational issues.

SKU

Standard shipping

Estimated delivery: 3-5 business days (metro), 7-10 business days (regional/remote)

Specifications

Narrow gauge: 1067mm
Cant (cross level / superelevation): 30mm to +200mm
Flangeway (groove) clearance: 16mm
Check rail gauge: 1067mm
Weight: ~2.5 kg
Electrically insulated: no electrical interference with track circuits
Robust mechanical design: analogue graduated scales and pointers

20078905

Warranty

12 Months
